006733F | Raypak Tube Bundle Heat Exchanger For 265-267
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

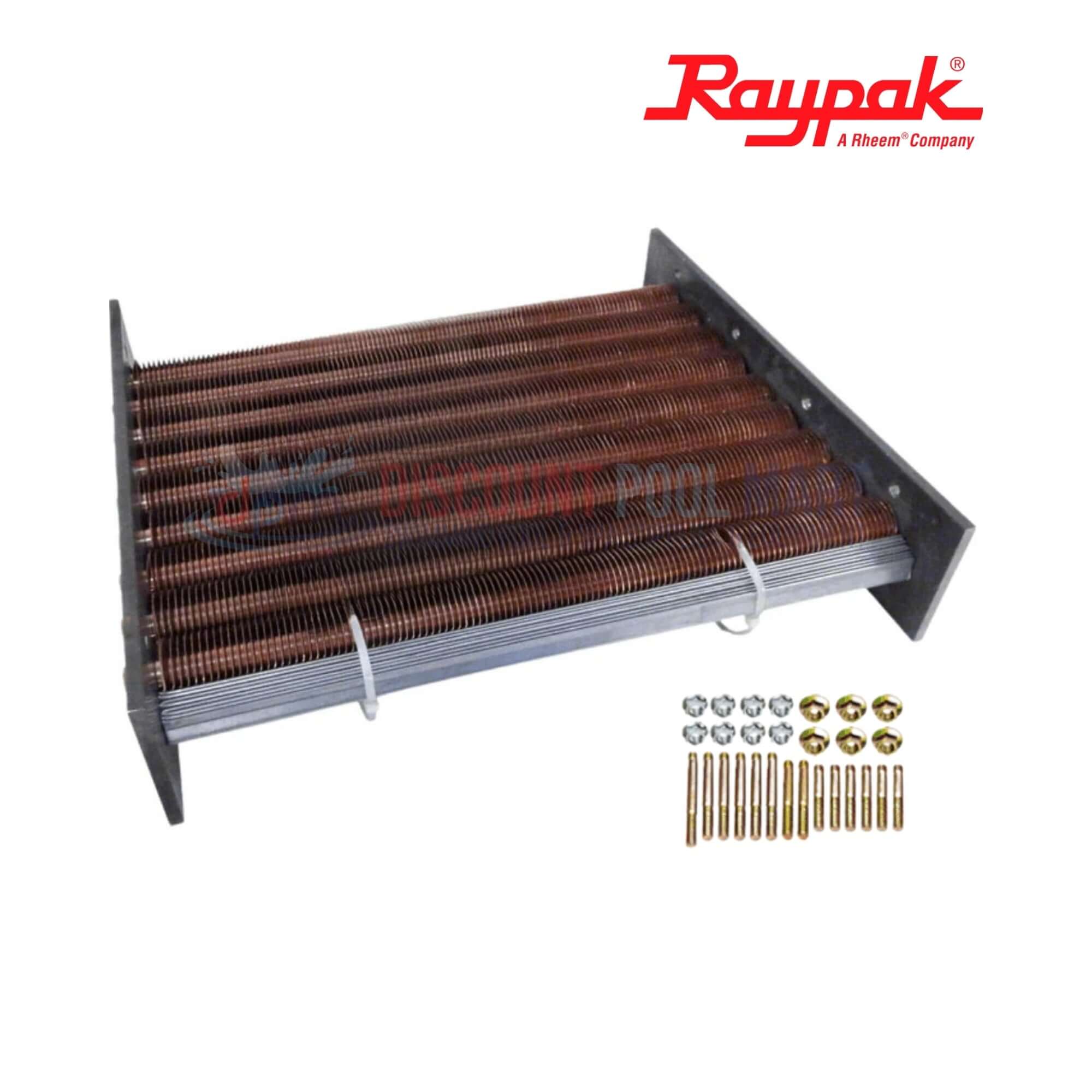

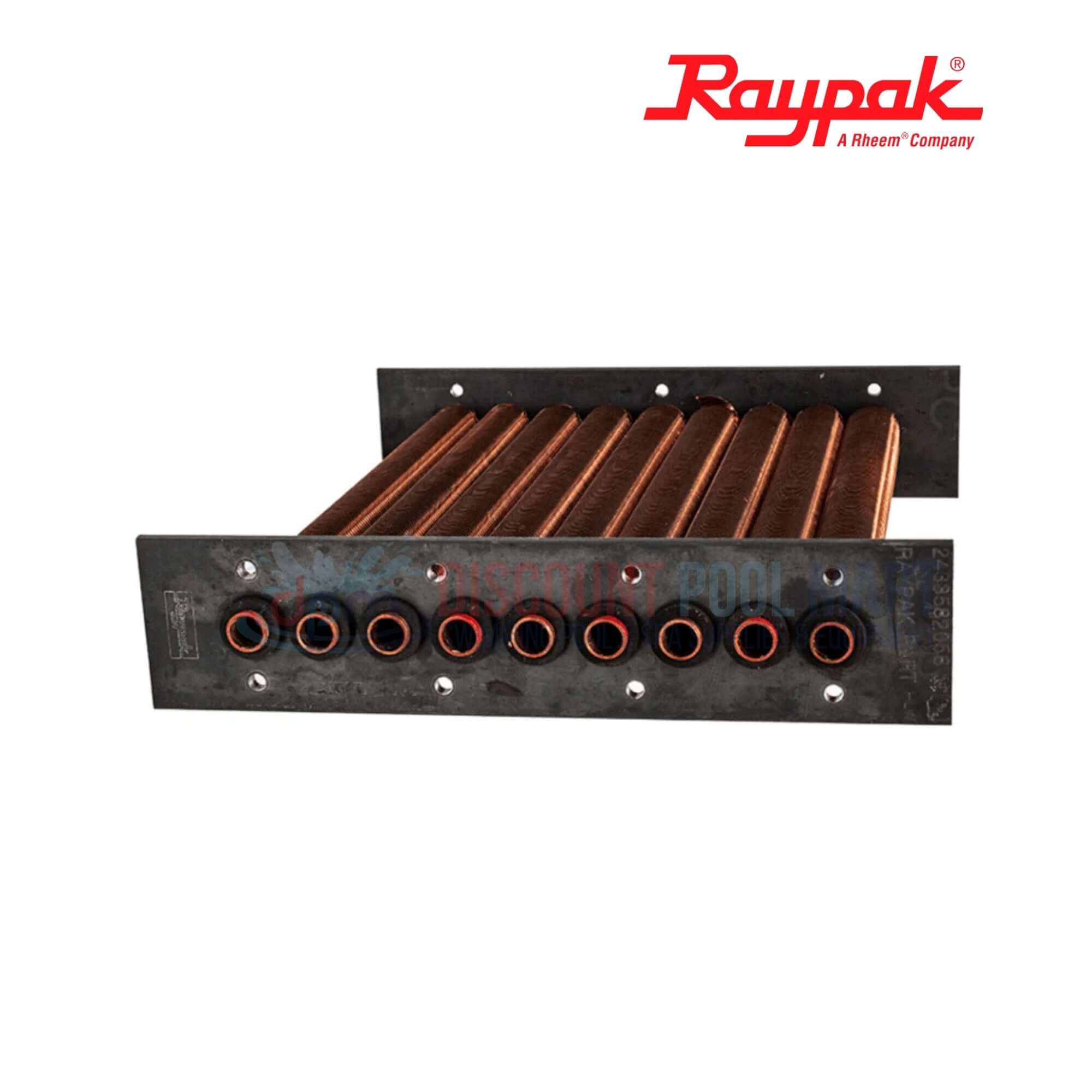

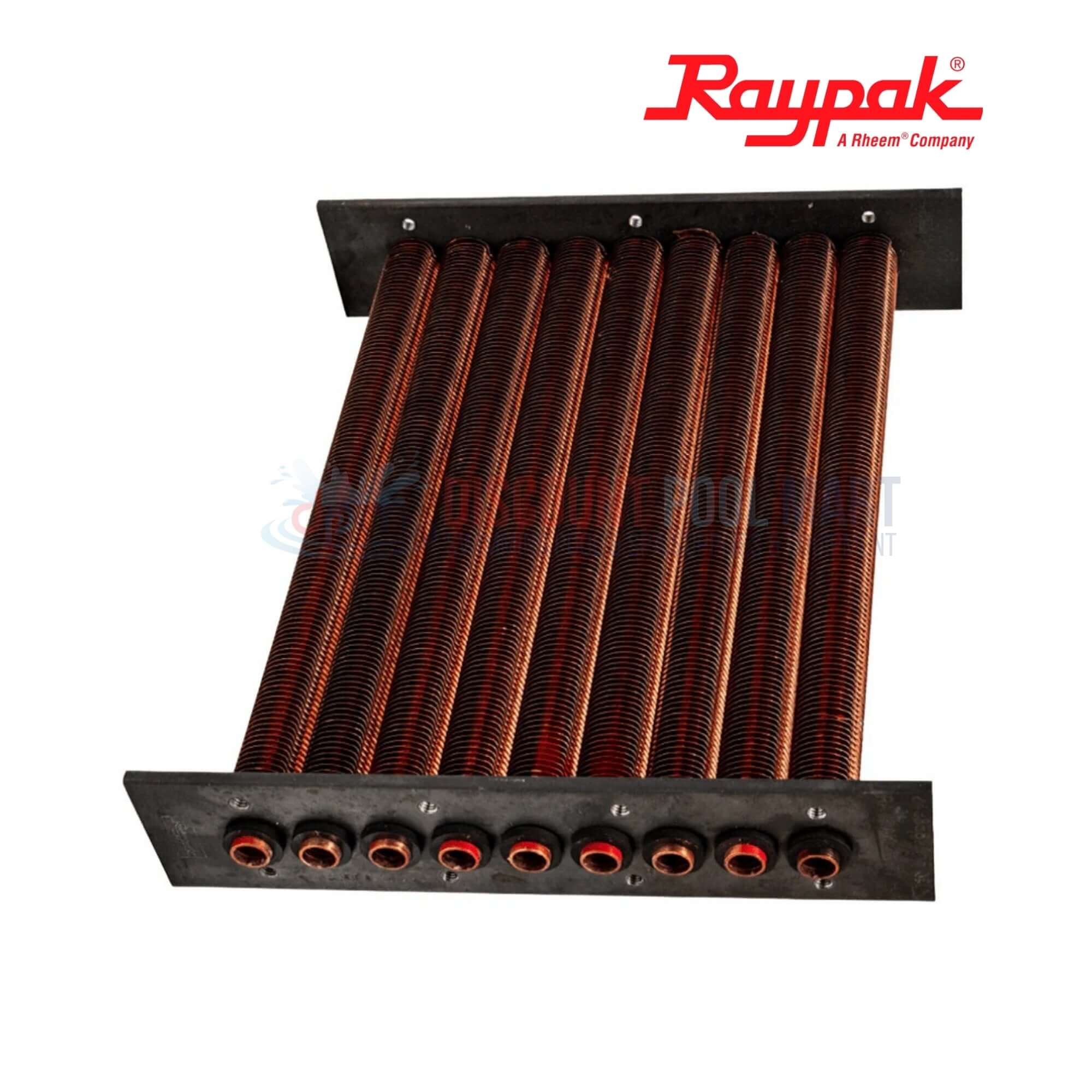

The Raypak 006733F Tube Bundle Heat Exchanger is a full OEM replacement assembly crafted for ASME cast iron heater models in the R265A/B, R266A, and R267A series. This bundle includes nine copper tubes, an ASME header, gasket, baffle kit, bolt kit, and stud bolts—everything required to restore proper water flow, thermal transfer, and heater integrity. With heavy-duty components designed for thermal cycling, corrosion resistance, and high heat load, the 006733F ensures your heater operates safely and efficiently under demanding conditions.
-

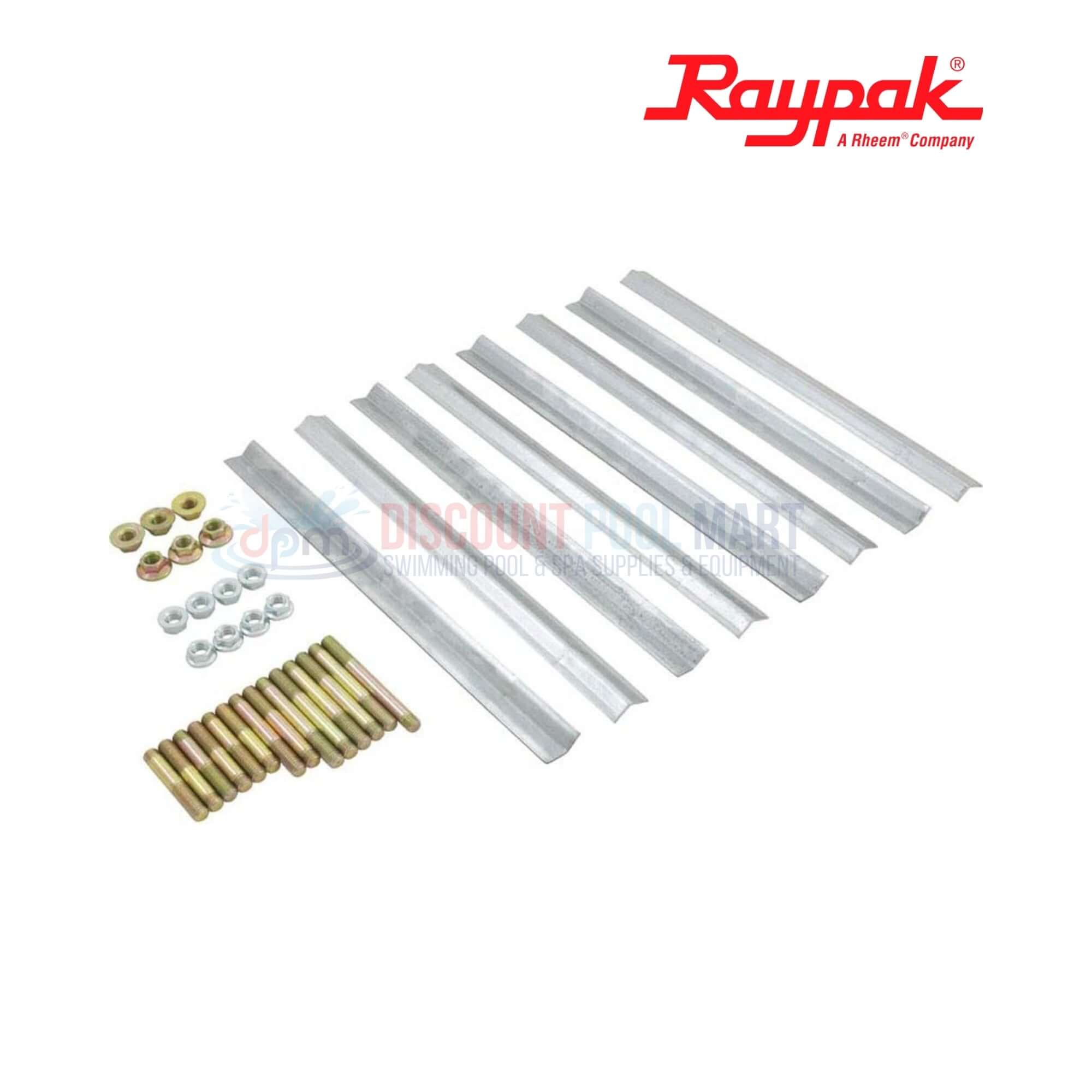

Complete OEM Heat Exchanger Kit: Includes all essential components—copious copper tubes, baffle plates, bolts, stud kits and header gasket—so you get a full replacement in one package.
-
ASME Cast-Iron Header with Copper Tubing: Combines durable cast iron header with copper tubes for strong thermal conductivity and structural robustness needed in commercial-grade heater fireboxes.
-
Designed for 265/266/267 Series Heaters: Engineered specifically for R265A/B, R266A, and R267A models, ensuring exact fit, alignment, and compatibility with sensors and plumbing.
-
Optimal Dimensions for Performance: Measures approximately 17-1/8″ (length) × 5-1/2″ (width) × 3-1/2″ (height) to match firebox specs, enabling effective heat exchange and minimizing spatial interference.
-
Resists Corrosion and Thermal Stress: Built to endure harsh water chemistry and repeated heating/cooling cycles, helping prevent premature failures and leaks for longer heater life.
- Raypak Heater Models: 265A, 265B, 266A, 267A
Need help with the Raypak 006733F Tube Bundle Heat Exchanger for 265/266/267 series heaters? This section covers installation basics, troubleshooting concerns, and in-store availability so you can restore your heater’s performance.
Installing the 006733F Heat Exchanger
This kit includes copper tubes, an ASME header, gaskets, baffles, and hardware. Installation requires careful alignment inside the firebox and tightening bolts evenly to avoid leaks.
How to install Raypak 006733F tube bundle on R266A heater
Correct gasket placement for 006733F heat exchanger assembly
Do you need new baffles when replacing with 006733F kit
Step by step installation of 006733F on Raypak R267A
Troubleshooting Heat Exchanger Issues
Leaks, reduced heating, or sensor misalignment often indicate poor gasket sealing or corrosion at the tubes. These are common concerns after replacement.
Why does Raypak 265B still leak after 006733F tube bundle install
How to test copper tube integrity on new 006733F assembly
Is heater efficiency reduced if 006733F isn’t aligned correctly
Can loose bolts cause leaks on 006733F tube bundle kit
In-Store Availability and Fitment Help
Bring your heater model number to confirm compatibility before purchasing. Store staff can verify fit with R265, R266, and R267 models.
Buy in store Raypak 006733F tube bundle for 265A and 265B heaters
Walk in and compare old tube bundle with new 006733F assembly
Available locally 006733F heat exchanger kit for Raypak R267A
Can counter staff confirm 006733F fitment before purchase
